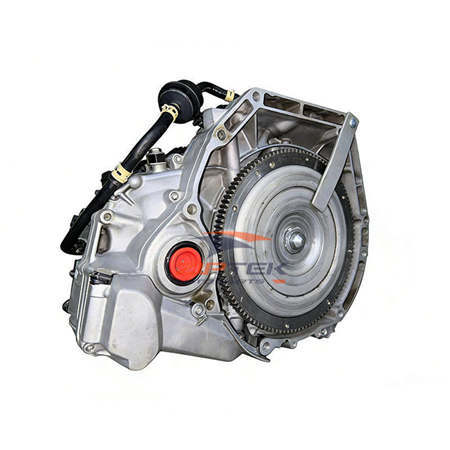

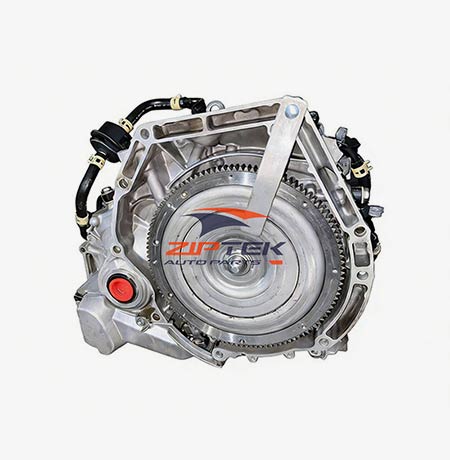

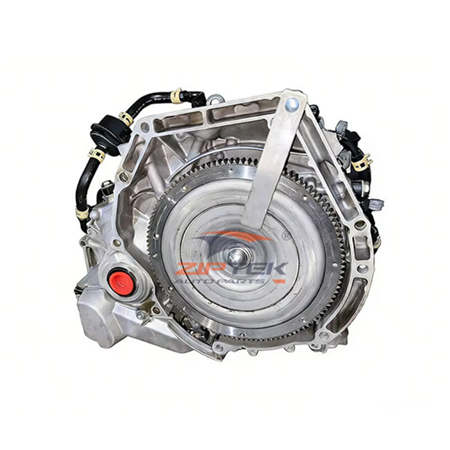

2003152NA02 200315HA030 Honda HR-V G2AA Transmission
- OE NO.::2003152NA02 200315HA030
- Model Number:G2AA
- Transmission Speeds:CVT
- Gearbox Type:CVT
- Product description: Application: Honda Compact Crossovers & Sedans: HR-V / Vezel: 1.8L R18A / R18Z1 FWD (2015 - 2022) Civic: 1.8L R18Z1 FWD (2014 - 2015) XR-V: 1.8L R18ZA FWD (2015 - 2020)
|
Model Number |
G2AA |
|
MOQ |
1 Pcs |
|
Condition |
Remanufactured |
|
Warranty |
6 Months |
The Continuously Variable Transmission (CVT) assembly with reference numbers 2003152NA02 and 200315HA030 is designed for the Honda G2AA Earth Dreams CVT. Engineered specifically for front-wheel-drive applications and matched with the reliable 1.8L i-VTEC (R18A/R18Z) engine, this highly efficient unit features a torque converter for smooth launch and a wide gear ratio spread, delivering excellent fuel economy and responsive acceleration for the Honda HR-V, Vezel, and related compact SUV platforms.
Quick Specifications:
- Part Numbers: 2003152NA02 / 200315HA030 (Honda OEM format)
- Transmission Model: G2AA (Earth Dreams CVT)
- Type: Continuously Variable Transmission (CVT) with Torque Converter
- Configuration: Transverse Front-Wheel Drive (FWD)
- Engine Compatibility: 1.8L Inline-4 (R18A / R18Z i-VTEC)
- Max Input Torque: ~170-180 Nm
- Fluid Type: Honda HCF-2 CVT Fluid
- Fluid Capacity: ~3.5 - 4.2 Liters (dry fill)
Applications:
- Honda HR-V (RU1, 2015-2022, 1.8L FWD variants)
- Honda Vezel (RU1, JDM 1.8L FWD variants)
- Honda Shuttle (Select 1.5L/1.8L FWD variants sharing the Earth Dreams CVT platform)
- Honda City / Grace (Select global market variants)
- Honda Fit / Jazz (Select late-generation variants using G-series CVT)
Complete Assembly Includes:
✅ Lightweight aluminum transmission case with high-efficiency pulley system
✅ High-tensile steel push-belt
✅ Torque converter with early-engagement lock-up clutch (replaces traditional start clutch)
✅ Advanced valve body with linear solenoids and high-flow oil pump
✅ Integrated Transmission Control Module (TCM) or external ECU interface
✅ Input/Output speed sensors, range selector, and differential assembly
✅ Sealing gaskets and O-rings
✅ High-tensile steel push-belt
✅ Torque converter with early-engagement lock-up clutch (replaces traditional start clutch)
✅ Advanced valve body with linear solenoids and high-flow oil pump
✅ Integrated Transmission Control Module (TCM) or external ECU interface
✅ Input/Output speed sensors, range selector, and differential assembly
✅ Sealing gaskets and O-rings
Attention: Transmission mounts, shift cables, axles, and external cooler lines may need to be transferred from the original unit.
Key Features:
✅ Earth Dreams Technology: Features a significantly wider gear ratio spread and reduced internal friction compared to older Honda CVTs, maximizing the fuel efficiency of the R18A engine.
✅ Torque Converter Launch: Utilizes a traditional torque converter for smooth, creep-free launches from a stop, eliminating the "rubber band" feel and shudder associated with older start-clutch CVTs.
✅ G-Design Shift Logic: Advanced control logic that optimizes pulley ratios during hard acceleration, providing a more linear and responsive driving feel.
✅ Compact & Lightweight: Highly integrated design reduces overall weight, improving vehicle handling and payload capacity.
✅ High-Efficiency Oil Pump: Reduces parasitic drag on the engine, further contributing to outstanding fuel economy.
✅ Torque Converter Launch: Utilizes a traditional torque converter for smooth, creep-free launches from a stop, eliminating the "rubber band" feel and shudder associated with older start-clutch CVTs.
✅ G-Design Shift Logic: Advanced control logic that optimizes pulley ratios during hard acceleration, providing a more linear and responsive driving feel.
✅ Compact & Lightweight: Highly integrated design reduces overall weight, improving vehicle handling and payload capacity.
✅ High-Efficiency Oil Pump: Reduces parasitic drag on the engine, further contributing to outstanding fuel economy.
Technical Notes:
Critical Installation Requirements:
- Fluid Specification: Must use Honda HCF-2 CVT fluid exclusively. Do NOT use older Honda CVTF or HMMF (Hybrid Motor Fluid). HCF-2 has specific friction modifiers and viscosity required for the Earth Dreams pulley system; incorrect fluid will cause immediate belt slip and transmission failure.
- Fluid Level Check: Must be performed with the transmission at operating temperature (typically 40°C–50°C) and the engine idling, using the dipstick or overflow check plug.
- ECU/TCM Calibration: After installation, a "CVT Calibration" and "Idle Learn" procedure must be performed using the Honda HDS (Honda Diagnostic System) or equivalent professional scanner to ensure proper pulley pressure and shift mapping.
- Cooler Flushing: The transmission cooler (integrated into the radiator) and external lines must be thoroughly flushed to remove metallic debris from the failed unit.
Common Issues & Maintenance:
- Valve Body / Solenoid Wear: The precision linear solenoids are sensitive to fluid degradation. Regular HCF-2 fluid changes prevent abrasive debris from causing sticky valves or ratio control issues.
- Bearing Noise: Whining or humming noises at highway speeds can indicate wear on the input shaft or differential bearings, a known wear item in high-mileage units.
- Overheating: While highly efficient, sustained high-speed driving or climbing steep grades can heat the fluid. Ensure the cooling system is fully functional.
- Fluid Service Intervals: A drain and fill with Honda HCF-2 every 40,000–60,000 km is absolutely critical to maintain the health of the push-belt and pulleys, especially in stop-and-go traffic.
