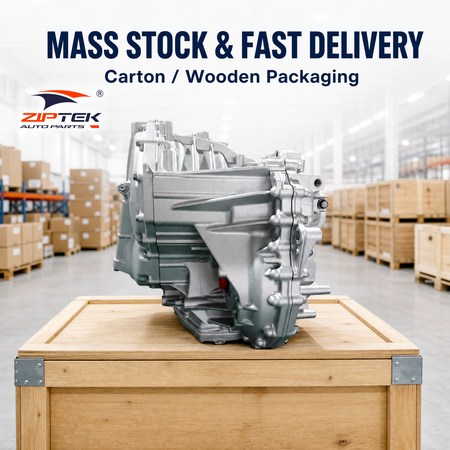

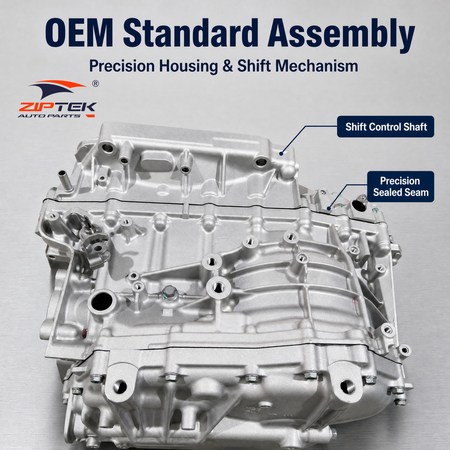

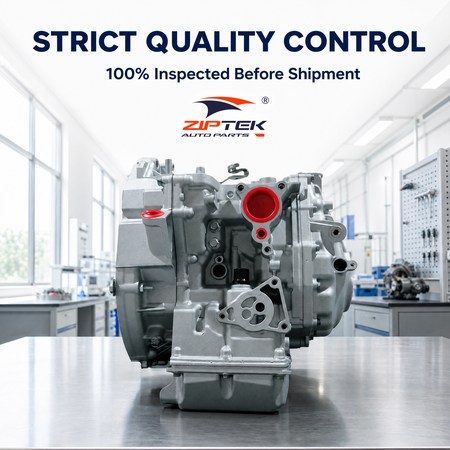

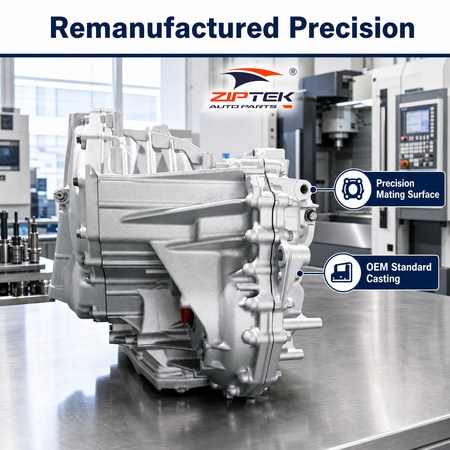

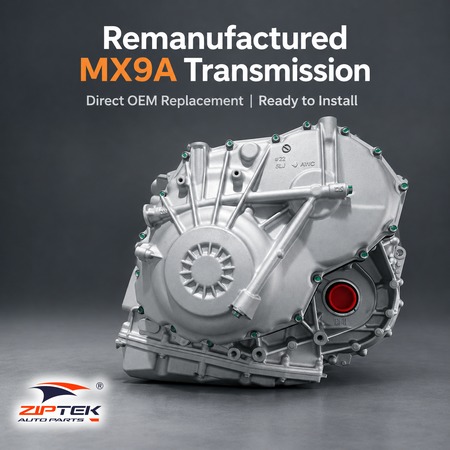

20031-5C4-030 Honda Accord 2.4L MX9A Transmission

Model Number	MX9A
MOQ	1 Pcs
Condition	Remanufactured
Warranty	12 Months

The Continuously Variable Transmission (CVT) assembly with reference numbers 20031-5C4-030 and 200315C4030 is designed for the Honda MX9A Earth Dreams automatic transmission. This unit features a high-strength steel push-belt, electronically controlled variator pulleys, and a lock-up torque converter, delivering seamless stepless acceleration and improved fuel efficiency for Honda Accord, CR-V, and related 2.4L platforms.

----------------------------------------

Quick Specifications:
• Part Numbers: 20031-5C4-030 / 200315C4030 / 20031-5C4-000
• Transmission Model: MX9A (Earth Dreams Continuously Variable Transmission)
• Configuration: Front-Wheel Drive (FWD) / All-Wheel Drive (AWD) platform family
• Engine Compatibility: 2.4L L4 K24W Earth Dreams i-VTEC
• Fluid Type: Genuine Honda HCF-2 CVT Fluid

----------------------------------------

Applications:
• Honda Accord (2013-2017, 2.4L K24W variants)
• Honda CR-V (2015-2019, 2.4L K24W variants)

----------------------------------------

Complete Assembly Includes:
✅ Transmission case with primary and secondary variator pulleys
✅ High-tensile steel push-belt assembly
✅ Torque converter with lock-up clutch
✅ Valve body with linear pressure control solenoids
✅ Oil pump, internal filter, and speed sensors
✅ Sealing gaskets and O-rings

Note: Mounts, shift cables, external cooler lines, and wiring adapters may need to be transferred or purchased separately.

----------------------------------------

Key Features:
✅ Earth Dreams G-Design Shift logic for immediate throttle response and fuel economy
✅ Stepless ratio transitions eliminate conventional gear shift shock
✅ Lock-up torque converter reduces hydraulic slippage during launch and cruising
✅ Compatible with Honda HCF-2 fluid for optimal belt-to-pulley friction control
✅ Robust die-cast aluminum housing engineered for 2.4L sedan and SUV applications

----------------------------------------

Technical Notes:

Installation Criticals:
• Fluid Fill: Must use genuine Honda HCF-2 CVT fluid exclusively and follow the factory overflow check procedure at operating temperature. Using ATF-Z1 or DW-1 will cause belt slippage and failure.
• TCM Programming: TCM memory reset and start clutch / pulley pressure feedback learning must be performed after installation using a Honda HDS scan tool.
• Torque Converter: Ensure full seating into the transmission oil pump drive before mating to the engine to prevent pump damage.
• Cooler Flushing: Flush the external transmission fluid warmer/cooler and lines thoroughly to remove metallic debris from the old unit.

Maintenance Tips:
• Use only genuine Honda HCF-2 CVT fluid.
• Perform CVT clutch calibration via OBD2 diagnostic scanner after installation.
• Replace transmission fluid and warmer filter at recommended intervals to prevent judder.
