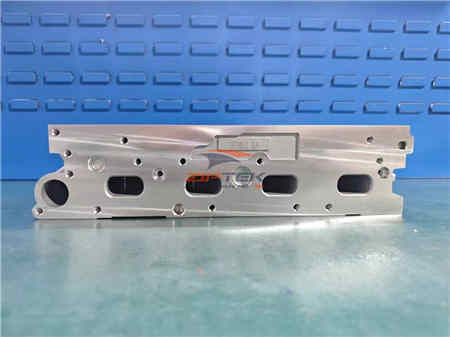

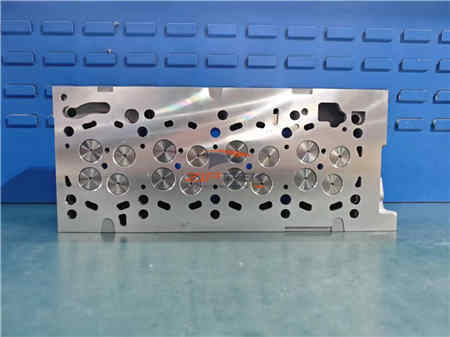

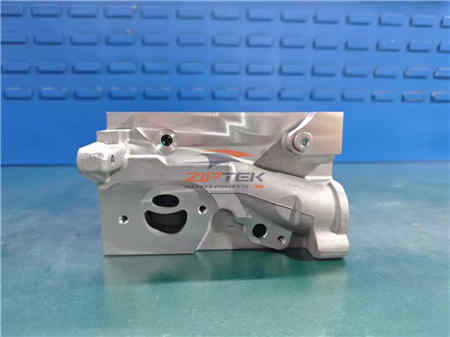

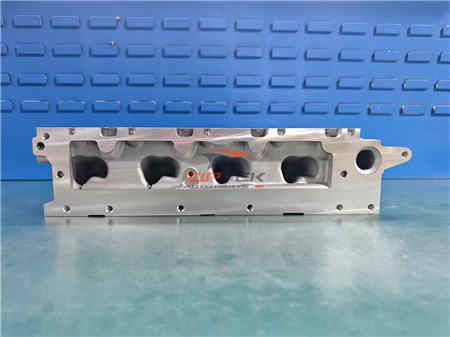

The cylinder head with reference numbers 908739 and 908839 is designed for Volkswagen EA288 CLHA 1.6L TDI diesel engines. This precision-engineered component features aluminum alloy construction with DOHC 16-valve configuration, compatible with VW Golf, Passat, Polo, Caddy, Skoda Octavia, and Seat Leon models. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for compact car and mid-size sedan applications.

---

Technical Features:

• Reference Numbers: 908739 / 908839
• Type: Cylinder Head (Bare)
• Valve Configuration: DOHC 16-Valve (4 valves per cylinder)
• Material: Aluminum Alloy
• Application: EA288 CLHA 1.6L TDI Diesel Engine

---

Engine Parameters:

• Engine Code: CLHA / CLHB / CRKB (EA288 family)
• Displacement: 1.6 L (1,598 cc)
• Configuration: Inline-4 DOHC 16V, Turbocharged & Intercooled
• Power Output: 66-81 kW (90-110 HP) @ 3000-4000 RPM
• Torque: 230-250 Nm @ 1500-2750 RPM
• Fuel System: Common Rail Direct Injection (TDI) + VGT
• Compression Ratio: 16.2:1
• Bore × Stroke: 79.5 mm × 80.5 mm
• Firing Order: 1-3-4-2
• Emission Standard: Euro 5 / Euro 6

---

Suitable Models:

• VW Golf VII (2012-2020, 1.6 TDI variants)
• VW Passat B8 (2014+, 1.6 TDI variants)
• VW Polo Mk5 / Mk6 (1.6 TDI variants)
• VW Caddy IV (2015+, 1.6 TDI variants)
• Skoda Octavia III / Rapid (1.6 TDI variants)
• Seat Leon III / Ibiza (1.6 TDI variants)
• Audi A3 8V (1.6 TDI, select markets)
