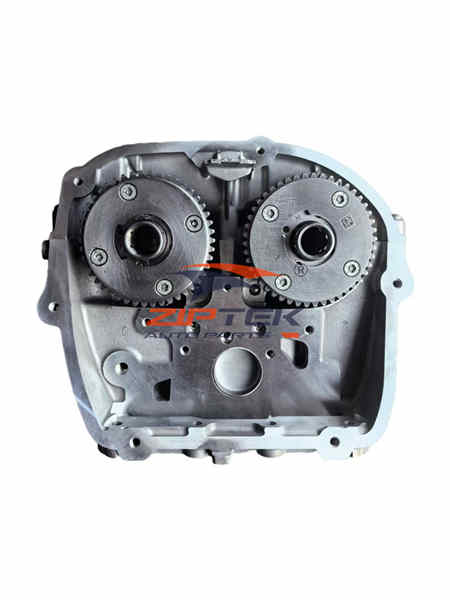

The cylinder head for Volkswagen EA888 Gen3 CUF 1.8L TSI/TFSI engine is a precision-engineered component designed for premium mid-size sedans and compact SUVs. This aluminum alloy cylinder head features DOHC 16-valve configuration with dual VVT (variable valve timing) and integrated exhaust manifold, compatible with Skoda Superb, VW Lamando, Passat, and Tiguan models. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for daily commuting and highway driving.

---

Technical Features:

• Part Type: Cylinder Head (Bare)
• Valve Configuration: DOHC 16-Valve + Dual VVT
• Material: Aluminum Alloy
• Application: EA888 Gen3 CUF 1.8L TSI/TFSI Engine
• Design: Integrated exhaust manifold, optimized cooling channels

---

Engine Parameters:

• Engine Code: CUF / CJSA / CJSB / CYFB (EA888 Gen3 family)
• Displacement: 1.8 L (1,798 cc)
• Configuration: Inline-4 DOHC 16V, Turbocharged & Intercooled
• Power Output: 132-141 kW (180-192 HP) @ 4200-6200 RPM
• Torque: 250-320 Nm @ 1400-4100 RPM
• Fuel System: Direct Injection (TSI/TFSI) + Turbocharger
• Compression Ratio: 9.6:1
• Bore × Stroke: 82.5 mm × 84.2 mm
• Firing Order: 1-3-4-2
• Emission Standard: Euro 6 / China V / China VI

---

Suitable Models:

• Skoda Superb III (2015+, 1.8 TSI variants)
• VW Lamando (2014+, Chinese market, 1.4T/1.8T variants)
• VW Passat B8 / Magotan (1.8 TSI variants)
• VW Tiguan L / Tayron (1.8 TSI variants)
• Audi A3 8V / A4L B9 (select EA888 applications)
• VW Arteon / CC (1.8 TSI variants)
