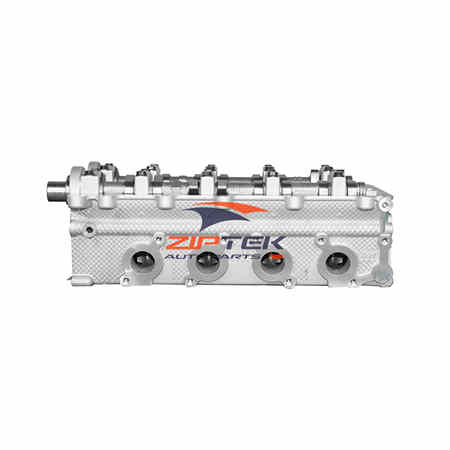

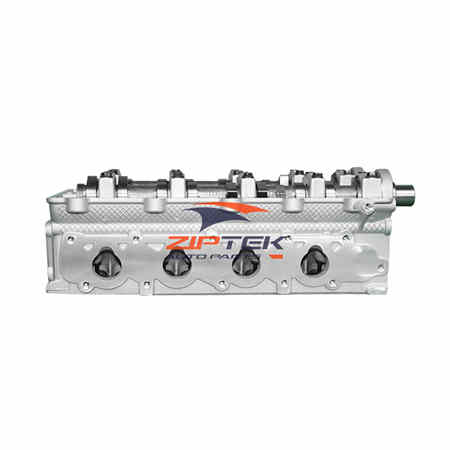

The cylinder head for Jinbei DLDG14/CG14 1.5L gasoline engine is a precision-engineered component designed for light commercial vans and minibuses. This aluminum alloy cylinder head features DOHC 16-valve configuration with precision-machined valve seats and guide bores, compatible with Jinbei Haise X30L, X30, and Grace models. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for urban delivery and commercial transport applications.

---

Technical Features:

• Part Type: Cylinder Head (Bare)
• Valve Configuration: DOHC 16-Valve (4 valves per cylinder)
• Material: Aluminum Alloy
• Application: DLDG14 / CG14 1.5L Gasoline Engine
• Design: Cross-flow combustion chamber, optimized intake/exhaust ports

---

Engine Parameters:

• Engine Code: DLDG14 / CG14 (Mitsubishi-derived family)
• Displacement: 1.5 L (1,498-1,499 cc)
• Configuration: Inline-4 DOHC 16V, Naturally Aspirated
• Power Output: 75-83 kW (102-113 HP) @ 5600-6000 RPM
• Torque: 135-145 Nm @ 3500-4000 RPM
• Fuel System: Multi-Point Fuel Injection (MPI)
• Compression Ratio: 10.0:1 - 10.5:1
• Bore × Stroke: 74 mm × 86 mm
• Firing Order: 1-3-4-2
• Emission Standard: China V / China VI

---

Suitable Models:

• Jinbei Haise X30L (2015+)
• Jinbei Haise X30 / Grace
• Jinbei Sea Lion / King Star
• Brilliance Jinbei Commercial Vans
• Light-duty cargo/passenger transport variants
