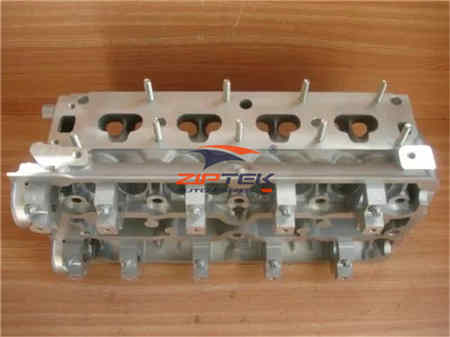

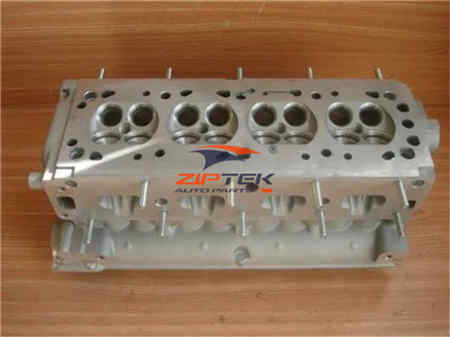

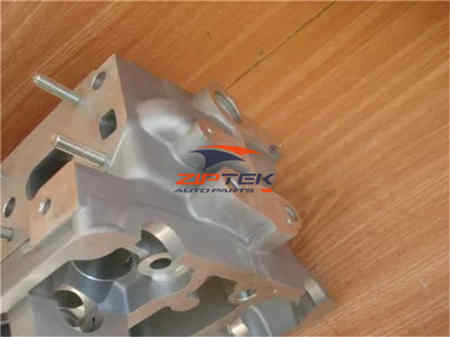

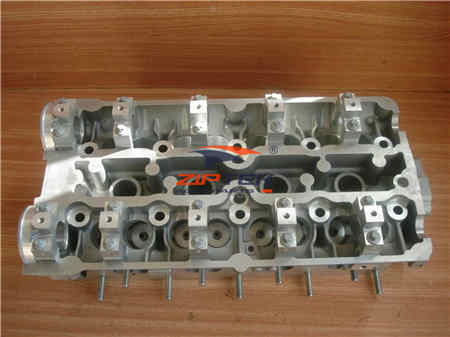

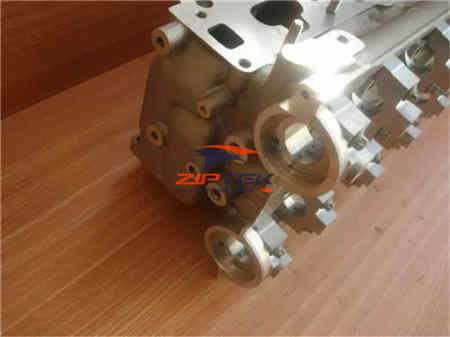

The cylinder head for GM Family II X16XEL 1.6L gasoline engine is a precision-engineered component designed for compact cars. This aluminum alloy cylinder head features DOHC 16-valve configuration with precision-machined valve seats and guide bores, compatible with Opel Corsa, Astra, Vectra, and Vauxhall models. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for urban commuting and daily driving.

---

Technical Features:

• Part Type: Cylinder Head (Bare)
• Valve Configuration: DOHC 16-Valve (4 valves per cylinder)
• Material: Aluminum Alloy
• Application: X16XEL 1.6L Gasoline Engine
• Design: Cross-flow combustion chamber, optimized intake/exhaust ports

---

Engine Parameters:

• Engine Code: X16XEL / X16XE (GM Family II)
• Displacement: 1.6 L (1,598 cc)
• Configuration: Inline-4 DOHC 16V, Naturally Aspirated
• Power Output: 78-80 kW (106-109 HP) @ 6000 RPM
• Torque: 145-150 Nm @ 3600-4000 RPM
• Fuel System: Multi-Point Fuel Injection (MPI)
• Compression Ratio: 10.5:1
• Bore × Stroke: 79 mm × 81.5 mm
• Firing Order: 1-3-4-2
• Emission Standard: Euro 2 / Euro 3

---

Suitable Models:

• Opel Corsa B / C (1993-2003)
• Opel Astra F / G (1991-2002)
• Opel Vectra A (1991-1995)
• Opel Tigra A (1.6L variants)
• Vauxhall Corsa / Astra / Tigra (UK market)
• Chevrolet Corsa / Classic (select markets)
