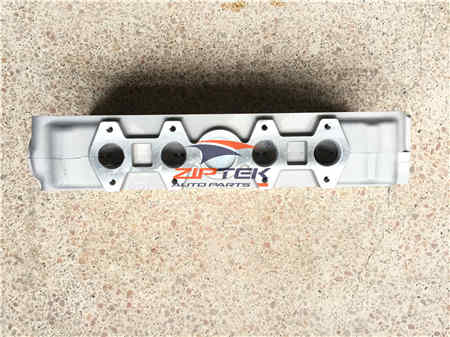

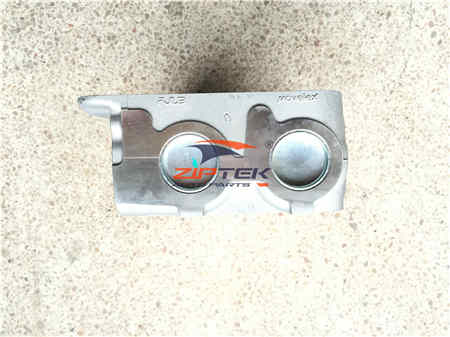

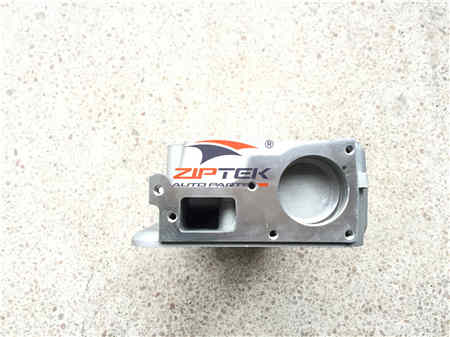

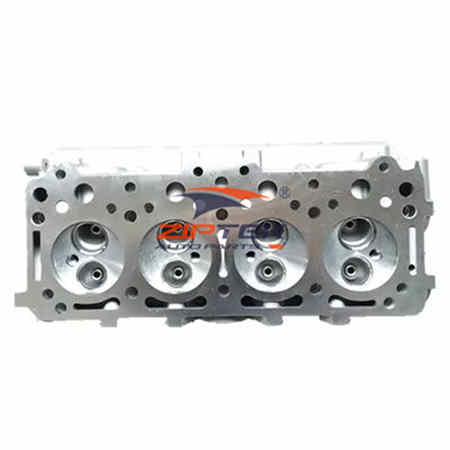

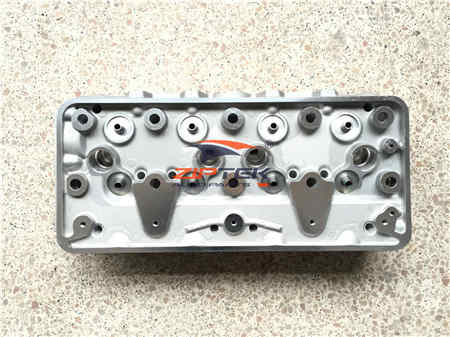

The cylinder head with reference numbers 910057 and 02.00.C3 is designed for Peugeot XN1 2.0L inline-4 gasoline engines. This precision-engineered component features cast iron construction with SOHC 8-valve configuration, compatible with Peugeot 504, 505, and 404 models. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for classic Peugeot vehicles and restoration projects.

---

Technical Features:

• Reference Numbers: 910057 / 02.00.C3
• Type: Cylinder Head (Bare)
• Valve Configuration: SOHC 8-Valve (2 valves per cylinder)
• Material: Cast Iron
• Application: XN1 2.0L Inline-4 Gasoline Engine

---

Engine Parameters:

• Engine Code: XN1 / XN1P / XN1S
• Displacement: 2.0 L (1,971-1,995 cc)
• Configuration: Inline-4 SOHC, Naturally Aspirated
• Power Output: 70-85 kW (95-115 HP) @ 5250-5500 RPM
• Torque: 150-165 Nm @ 3000-3500 RPM
• Fuel System: Carburetor (Solex/Weber) / Mechanical Fuel Injection
• Compression Ratio: 8.8:1 - 9.3:1 (variant-dependent)
• Bore × Stroke: 84 mm × 89 mm
• Firing Order: 1-3-4-2

---

Suitable Models:

• Peugeot 504 Sedan / Coupe / Cabriolet (1968-1983)
• Peugeot 505 Sedan / Break (1979-1992)
• Peugeot 404 (late production variants)
• Peugeot P4 / Military Vehicles
• Classic restoration & rally projects
