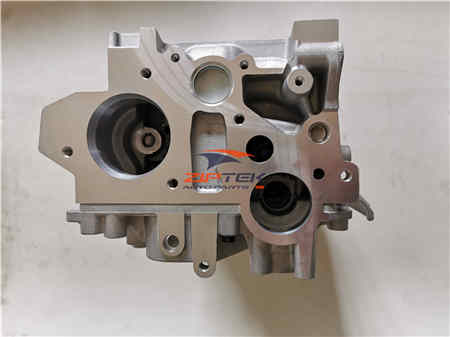

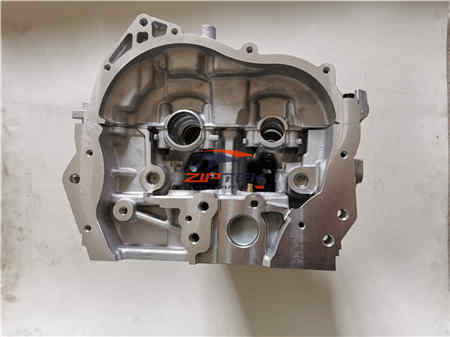

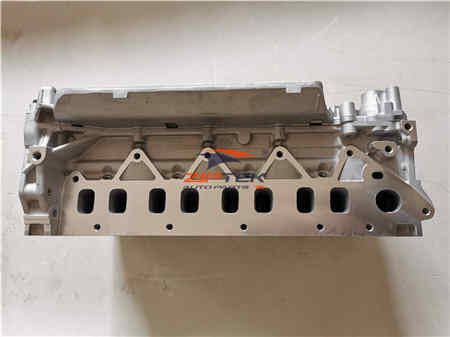

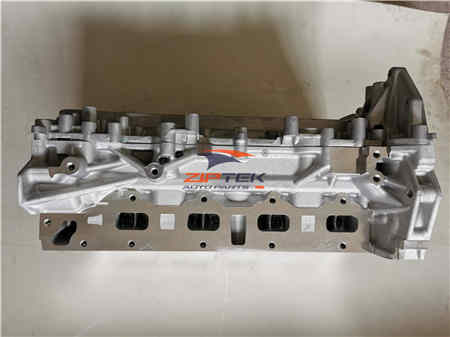

The cylinder head with reference number 110422959R is designed for Renault-Nissan R9M 1.6L dCi diesel engines. This precision-engineered component features aluminum alloy construction with DOHC 16-valve configuration, compatible with Renault Espace, Trafic, Master, and Nissan Qashqai, X-Trail models. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for passenger cars and light commercial vehicle applications.

---

Technical Features:

• Reference Number: 110422959R
• Type: Cylinder Head (Bare)
• Valve Configuration: DOHC 16-Valve (4 valves per cylinder)
• Material: Aluminum Alloy
• Application: R9M 1.6L dCi Diesel Engine

---

Engine Parameters:

• Engine Code: R9M (R9M-408 / R9M-414 / R9M-462 / R9M-464 variants)
• Displacement: 1.6 L (1,598 cc)
• Configuration: Inline-4 DOHC 16V, Turbocharged & Intercooled
• Power Output: 96-130 kW (130-175 HP) @ 3750 RPM
• Torque: 320-380 Nm @ 1750-2500 RPM
• Fuel System: Common Rail Direct Injection (dCi) + VGT
• Compression Ratio: 15.4:1
• Bore × Stroke: 78 mm × 83.5 mm
• Firing Order: 1-3-4-2
• Emission Standard: Euro 5 / Euro 6

---

Suitable Models:

• Renault Espace V (2015+, 1.6 dCi variants)
• Renault Trafic III / Master III
• Nissan Qashqai J11 / J12 (1.6 dCi variants)
• Nissan X-Trail T32 (1.6 dCi variants)
• Renault Kad
