L1MP7000FB Ford Explorer 10R60 Transmission

OE NO.:L1MP7000FB L1MZ7000-F
Model Number: 10R60
Transmission Speeds: 10
Gearbox Type: Automatic
Product description: Application: Ford SUVs & Off-Roaders: Explorer: 2.3L EcoBoost, 3.0L EcoBoost V6 (2020 - 2025) Bronco: 2.3L EcoBoost, 2.7L EcoBoost V6 (2021 - 2025) Mustang: 2.3L EcoBoost (2024 - 2025) Li
INQUIRY

Model Number	10R60
MOQ	1 Pcs
Condition	Remanufactured
Warranty	6 Months

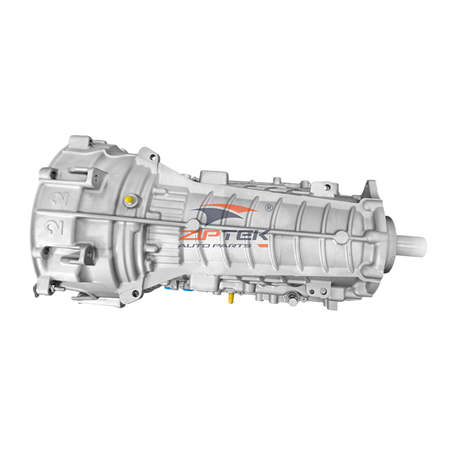

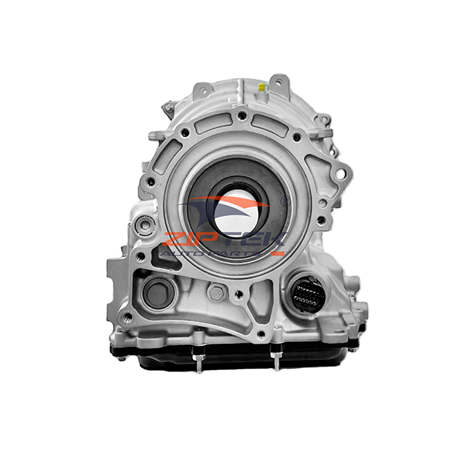

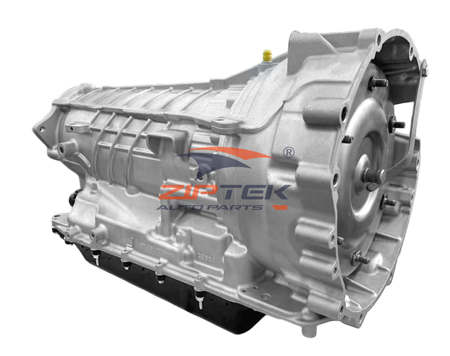

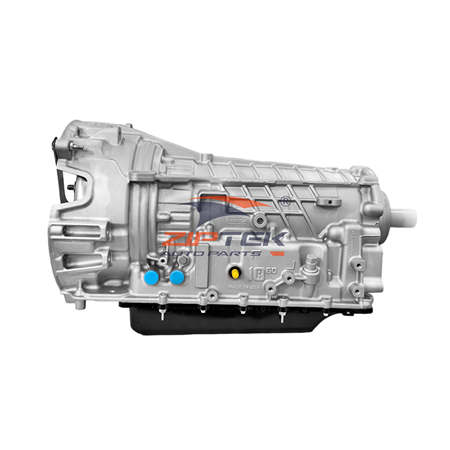

The automatic transmission assembly with reference numbers L1MP7000FB and L1MZ7000-F is designed for the Ford 10R60 10-speed automatic transmission. Engineered for longitudinal rear-wheel-drive and 4WD layouts, this advanced unit features a wide gear ratio spread and rapid clutch-to-clutch shifting, delivering exceptional performance and towing capability for the Ford Explorer, Bronco, Lincoln Aviator, and related mid-size SUV platforms.

Quick Specifications:

Part Numbers: L1MP7000FB / L1MZ7000-F (Ford OEM format)
Transmission Model: 10R60 (10-Speed Automatic)
Type: Longitudinal RWD / 4WD (AWD)
Max Input Torque: ~600 Nm (440 lb-ft)
Fluid Type: Mercon ULV (Ultra Low Viscosity)
Fluid Capacity: ~10.0 - 11.5 Liters (dry fill, varies by 2WD/4WD and cooler size)

Applications:

Ford Explorer (2020-present, 2.3L & 3.0L EcoBoost variants)
Ford Bronco (2021-present, 2.3L & 2.7L EcoBoost variants)
Lincoln Aviator (2020-present, 3.0L V6 Twin-Turbo variants)
Ford Ranger (Select next-gen/global market variants)
Ford Everest (Select global market variants)

Complete Assembly Includes:

✅ Heavy-duty aluminum transmission case with 10-speed planetary gearsets
✅ High-capacity torque converter with multi-plate lock-up clutch
✅ Mechatronic valve body with precision linear solenoids
✅ Integrated Transmission Control Module (TCM) or external ECU interface
✅ Clutch packs, brake bands, and high-volume oil pump
✅ Input/Output speed sensors, range selector, and sealing gaskets
✅ Transfer case adapter housing (for 4WD/AWD models)

Note: Transmission mounts, shift cables, transfer case (if separate), driveshafts, and external cooler lines may need to be transferred from the original unit.

Key Features:

✅ 10-Speed Architecture: Provides a massive 7.38:1 gear ratio spread for aggressive off-the-line acceleration and highly efficient, low-RPM highway cruising.
✅ Rapid Shift Times: Clutch-to-clutch shifting logic allows for near-instantaneous gear changes, minimizing power interruption during hard acceleration or towing.
✅ High Torque Capacity: Reinforced internal components specifically designed to handle the high torque output of Ford's 2.3L, 2.7L, and 3.0L EcoBoost engines.
✅ Advanced Lock-Up: The torque converter lock-up clutch engages in multiple lower gears to reduce slippage, lower transmission temperatures, and improve fuel economy.
✅ Selectable Drive Modes: Seamlessly integrates with the vehicle's terrain management system (e.g., Mud/Ruts, Sand, Rock Crawl) to alter shift mapping for off-road use.

Technical Notes:

Critical Installation Requirements:

Fluid Specification: Must use Mercon ULV (Ultra Low Viscosity) fluid exclusively. Using older Mercon LV or standard ATF will cause severe shift issues, overheating, and catastrophic internal damage.
TCM Programming: As-built data configuration and adaptation resets must be performed using Ford FDRS or IDS diagnostic tools after installation to ensure proper shift scheduling and line pressure.
Torque Converter Seating: Ensure the torque converter is fully seated into the transmission oil pump before mating to the engine block. Failure to do so will result in immediate oil pump destruction upon startup.
Cooler Flushing: Mandatory flushing of the transmission cooler and lines is required to prevent cross-contamination of metallic debris from the failed unit.

Common Issues & Maintenance:

Shift Clunks/Flares: The 10R60 relies heavily on adaptive learning. Rough shifts or clunks (especially 2-3 or 4-5) immediately after installation usually require a TCM reset and a specific 50-100 km drive cycle relearning procedure.
Valve Body Sensitivity: The precision linear solenoids are highly sensitive to fluid contamination. Regular fluid changes prevent abrasive debris from causing sticky solenoids or harsh shifts.
Fluid Service Intervals: Despite "lifetime" claims in some manuals, a Mercon ULV fluid drain and fill every 60,000–80,000 km is strongly recommended, especially for vehicles used for towing or off-roading.
