Summary Paragraph:

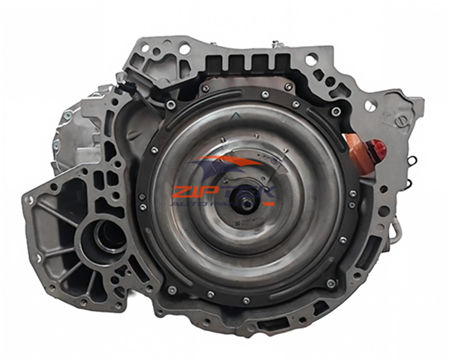

The remanufactured Toyota Aisin UB80F 8-speed All-Wheel-Drive (AWD / 4x4) Direct Shift automatic transaxle assembly (OE: 30500-0R060 / 30500-42360 / 30500-42370 / 30500-0R070) represents Toyota's TNGA-K drivetrain engineering, delivering rapid gear changes, direct mechanical lock-up feel, and superior highway fuel efficiency. Specifically designed to pair with Toyota's 2.5L A25A-FKS Dynamic Force inline-4 engine, this high-precision AWD gearbox is a reliable, direct-fit replacement for the Toyota RAV4 AWD (2019-2024), Toyota Camry AWD (2020-2024), Toyota Avalon AWD (2021), and Lexus ES250 AWD (2021-2024), restoring factory-grade drivability.
Core Features & Components:
• Direct Shift-8AT Planetary Architecture: Engineered with closely spaced 8-speed gear ratios and low-friction clutch packs to provide brisk off-the-line launch acceleration and ultra-quiet low-RPM highway cruising.
• Wide-Range Lock-Up Torque Converter: Features an advanced multi-plate lock-up clutch that engages early across gears 2 through 8, minimizing hydraulic power loss and delivering crisp, direct throttle response.
• Integrated AWD Transfer & Valve Body Unit: Comes fully assembled with an ultrasonically cleaned hydraulic control valve body, precision-calibrated linear solenoids, and an integrated AWD transfer output interface.
• 100% Dynamometer & Hydraulic Tested: Every remanufactured UB80F transaxle undergoes comprehensive hot-run dynamometer load testing to verify shift solenoid response, line pressure stability, and leak-free sealing prior to shipment.
Professional Installation & Technical Notes:
• Fluid Specification: This unit exclusively requires genuine Toyota ATF WS (World Standard) low-viscosity automatic transmission fluid. Utilizing non-approved multi-vehicle ATF will cause severe shift shock, torque converter shudder, and internal clutch wear.
• TCM Calibration & Initialization Mandatory: After installation, Toyota Techstream (GTS) diagnostic software must be used to register the transmission compensation code, reset ECM/TCM learned values, and perform shift adaptation initialization.
• System Flushing: The external transmission oil warmer/cooler and all hydraulic lines must be meticulously flushed prior to start-up to prevent any metallic debris from the previous failed unit from contaminating the new UB80F assembly.
