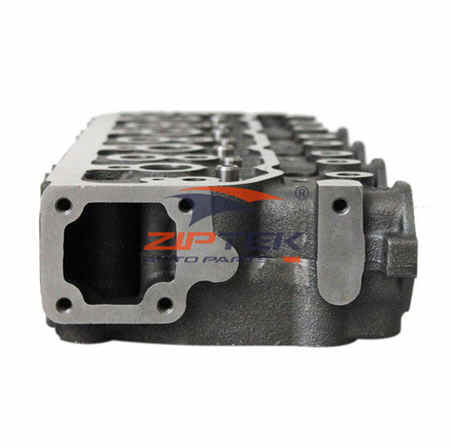

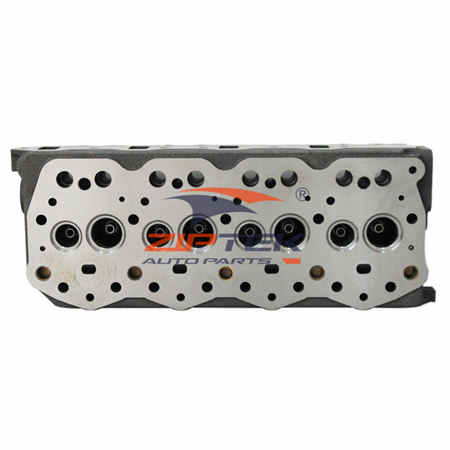

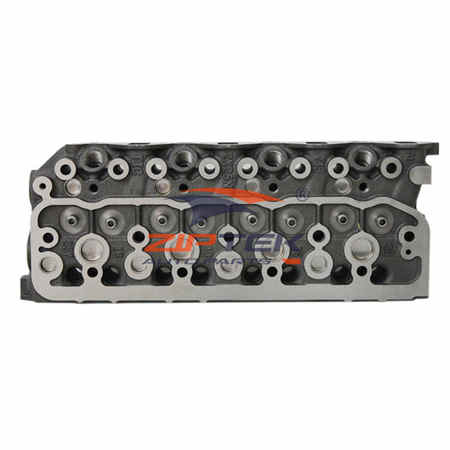

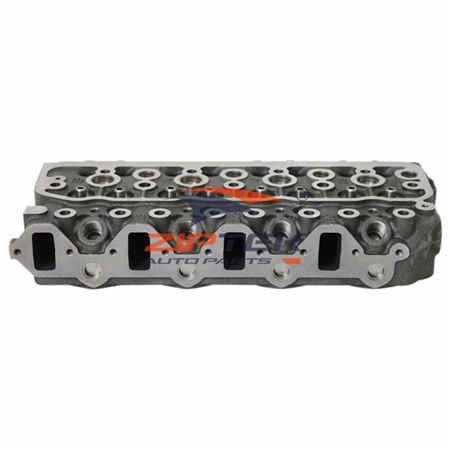

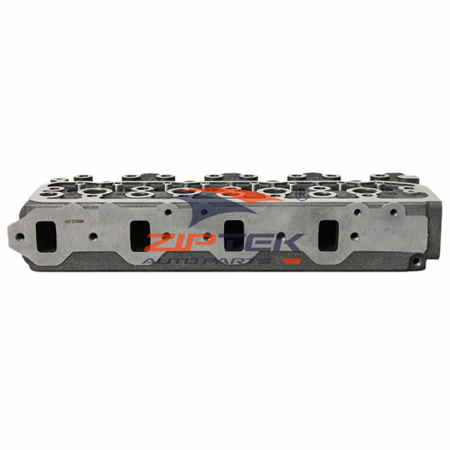

The cylinder head with reference numbers ME759064 and ME997271 is designed for Mitsubishi 4DR5 2.7L naturally aspirated diesel engines. This precision-engineered component features cast iron construction with SOHC 8-valve configuration, compatible with Mitsubishi Canter, Rosa, Delica, and commercial vehicle platforms. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for light-duty truck and bus applications.

---

Technical Features:

• Reference Numbers: ME759064 / ME997271
• Type: Cylinder Head (Bare)
• Valve Configuration: SOHC 8-Valve (2 valves per cylinder)
• Material: Cast Iron
• Application: 4DR5 2.7L Naturally Aspirated Diesel Engine

---

Engine Parameters:

• Engine Code: 4DR5 / 4DR5-T / 4DR5-AT (Mitsubishi Diesel Family)
• Displacement: 2.7 L (2,694 cc)
• Configuration: Inline-4 SOHC, Naturally Aspirated Diesel
• Power Output: 55-63 kW (75-85 HP) @ 3500 RPM
• Torque: 185-205 Nm @ 2000-2200 RPM
• Fuel System: Indirect Injection (IDI) / Distributor Pump
• Compression Ratio: 22.0:1 - 23.0:1
• Bore × Stroke: 91.1 mm × 103 mm
• Firing Order: 1-3-4-2
• Emission Standard: Euro 1 / Euro 2 / Local Standards

---

Suitable Models:

• Mitsubishi Canter (FB/FC/FD series, 1980s-2000s)
• Mitsubishi Rosa Minibus (BE/BD series)
• Mitsubishi Delica / L300 (diesel variants)
• Fuso Canter (early generations, select markets)
• Light-duty cargo trucks & chassis cabs
• Commercial bus conversions & specialist vehicles
