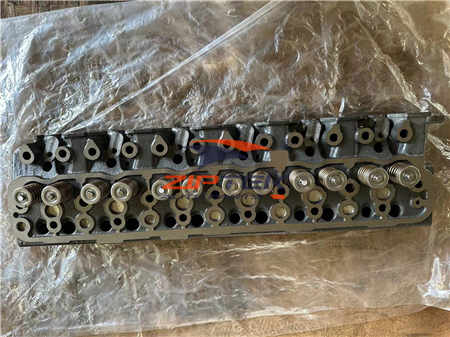

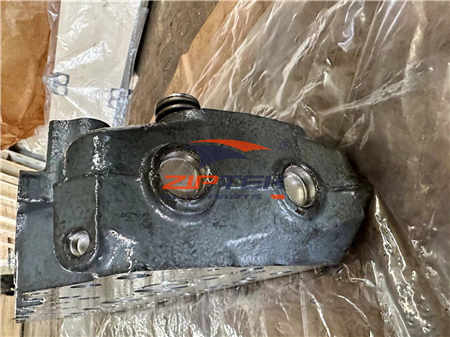

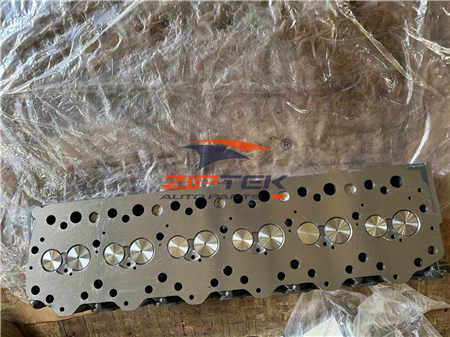

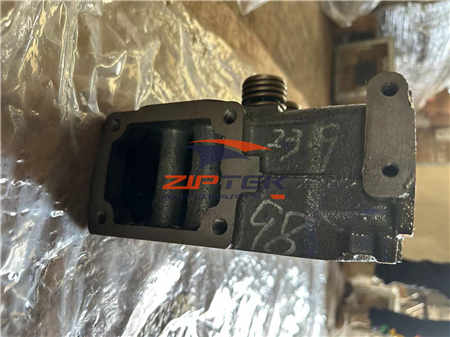

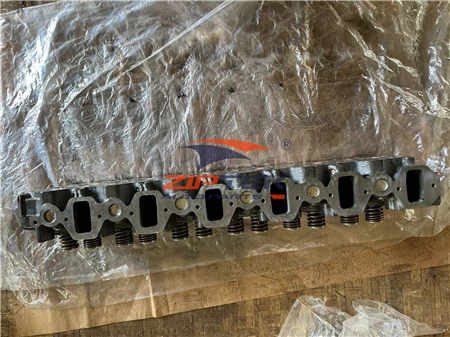

The cylinder head designed for Mitsubishi 6D34 5.9L turbocharged diesel engines. This heavy-duty cast iron cylinder head features SOHC 12-valve configuration with direct injection compatibility, delivering reliable performance for Mitsubishi Fuso Canter, Fighter, buses, and industrial power applications.

---

Quick Specifications:

• Part Number: Mitsubishi OEM format (verify by engine serial number)
• Engine Code: 6D34 / 6D34-T / 6D34-TL (Mitsubishi Diesel Family)
• Displacement: 5.9 L (5,900 cc)
• Configuration: Inline-6 SOHC 12V, Turbocharged & Intercooled
• Fuel System: Direct Injection (DI) with Mechanical Pump / Common Rail (variant-dependent)
• Material: Cast Iron
• Valve Configuration: SOHC 12-Valve (2 valves per cylinder)

---

Performance Data:

• Power Output: 103-132 kW (140-180 HP) @ 2,600-2,900 RPM (variant-dependent)
• Torque: 412-530 Nm @ 1,400-1,800 RPM
• Compression Ratio: 17.0:1 - 18.0:1
• Emission Standard: Euro 2 / Euro 3 / Tier 2

---

Applications:

• Mitsubishi Fuso Canter (FE/FG/FH series, 6D34 variants)
• Mitsubishi Fuso Fighter (FK/FM series, 6D34 variants)
• Mitsubishi Rosa / Aero Midi buses (6D34-powered)
• Industrial generator sets (50-100 kVA range)
• Agricultural machinery & material handling equipment
• Marine auxiliary power units & pump sets
