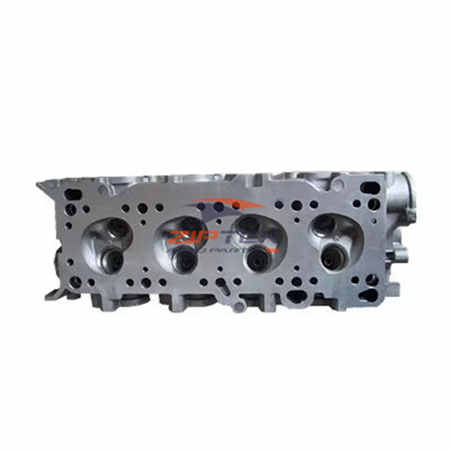

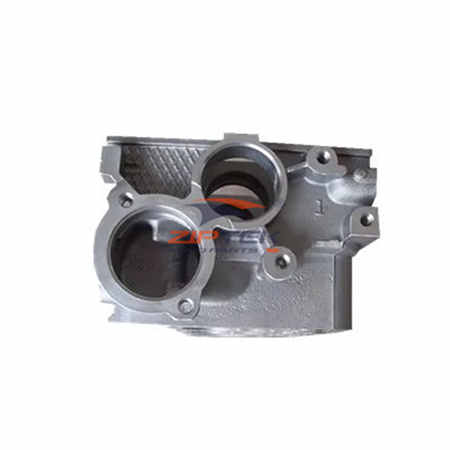

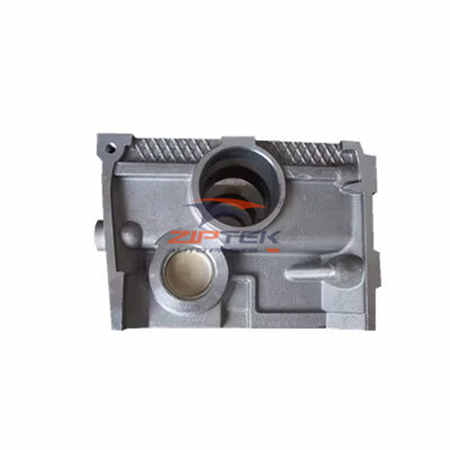

The cylinder head with reference number KK15010100D is designed for Mazda B3 1.3L gasoline engines. This aluminum alloy cylinder head features SOHC 8-valve configuration with multi-point fuel injection compatibility, delivering reliable performance for Mazda 121, Kia Rio, and related compact vehicle platforms.

---

Quick Specifications:

• Part Number: KK15010100D / KK15-01-0100D (Mazda/Kia OEM format)
• Engine Code: B3 / B3 ME / B3 SOHC (Mazda B-Series family)
• Displacement: 1.3 L (1,324 cc)
• Configuration: Inline-4 SOHC 8V, Naturally Aspirated
• Fuel System: Multi-Point Fuel Injection (MPI) / Carburetor (early variants)
• Material: Aluminum Alloy
• Valve Configuration: SOHC 8-Valve (2 valves per cylinder)

---

Performance Data:

• Power Output: 44-54 kW (60-73 HP) @ 5,000-5,500 RPM
• Torque: 100-108 Nm @ 3,000-3,500 RPM
• Compression Ratio: 9.4:1 - 10.0:1
• Emission Standard: Euro 1 / Euro 2

---

Applications:

• Mazda 121 / Demio DW (1996-2002, 1.3L variants)
• Kia Rio DC (2000-2005, 1.3L variants)
• Mazda 323 / Protege BA/BJ (1.3L variants)
• Kia Avella / Pride (B3-sourced variants)
• Ford Festiva / Aspire (shared B3 platform)
