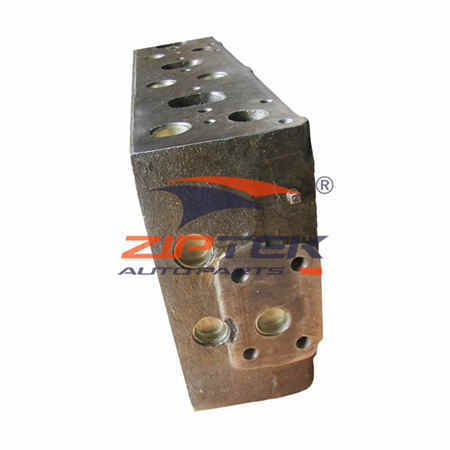

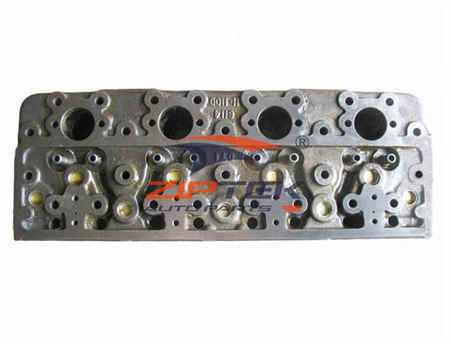

The cylinder head with reference number 6110-13-1110 is designed for Komatsu 4D130 4.3L naturally aspirated diesel engines. This precision-engineered component features cast iron construction with OHV 8-valve configuration, compatible with Komatsu D50, D50A, D60, and industrial equipment platforms. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for heavy-duty bulldozer and construction equipment applications.

---

Technical Features:

• Reference Number: 6110-13-1110
• Type: Cylinder Head (Bare)
• Valve Configuration: OHV 8-Valve (2 valves per cylinder)
• Material: Cast Iron
• Application: 4D130 4.3L Naturally Aspirated Diesel Engine

---

Engine Parameters:

• Engine Code: 4D130 / 4D130E / 4D130-1 (Komatsu Industrial Diesel Family)
• Displacement: 4.3 L (4,295 cc)
• Configuration: Inline-4 OHV, Naturally Aspirated Diesel
• Power Output: 44-55 kW (60-75 HP) @ 2000-2200 RPM
• Torque: 245-285 Nm @ 1400-1600 RPM
• Fuel System: Indirect Injection (IDI) / Inline Fuel Pump
• Compression Ratio: 17.5:1 - 18.5:1
• Bore × Stroke: 105 mm × 125 mm
• Firing Order: 1-3-4-2
• Emission Standard: Pre-Euro / Local Industrial Standards

---

Suitable Models:

• Komatsu D50 / D50A Bulldozer (1970s-1990s)
• Komatsu D60 / D65 Series (early generations)
• Komatsu FG25 / FG30 Forklift
• Komatsu PC40 / PC50 Mini Excavator (select variants)
• Industrial generators & agricultural tractors
• Heavy equipment rebuild & restoration projects
