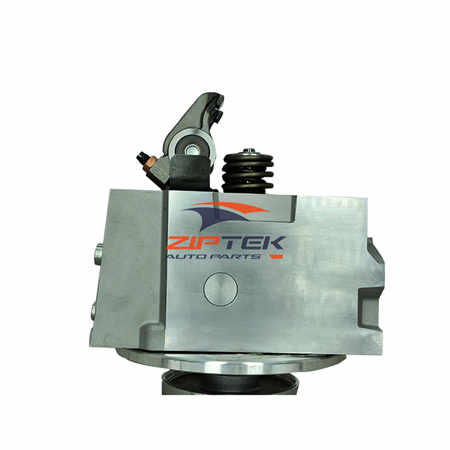

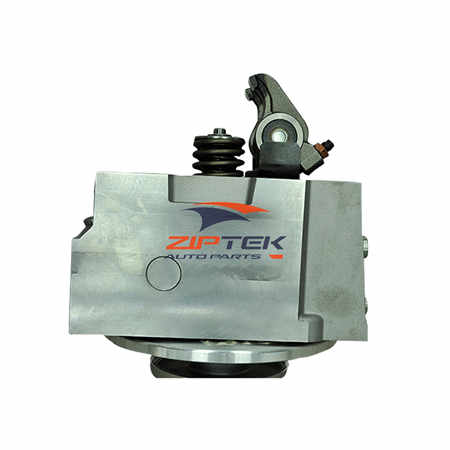

The cylinder head with reference number 740.30-1003014 is designed for Kamaz 740.30 10.85L turbocharged diesel engines. This precision-engineered component features cast iron construction with OHV 16-valve configuration (V8), compatible with Kamaz GBC, Kamaz 4310, 5320, 5511, and heavy-duty truck/military vehicle platforms. The cylinder head delivers reliable sealing, efficient heat dissipation, and exceptional durability for off-road truck and heavy transport applications.

---

Technical Features:

• Reference Number: 740.30-1003014
• Type: Cylinder Head (Bare)
• Valve Configuration: OHV 16-Valve (2 valves per cylinder, V8)
• Material: Cast Iron
• Application: Kamaz 740.30 10.85L Turbocharged Diesel Engine

---

Engine Parameters:

• Engine Code: Kamaz 740.30 / 740.30-260 (Kamaz V8 Diesel Family)
• Displacement: 10.85 L (10,850 cc)
• Configuration: V8 OHV, Turbocharged & Intercooled
• Power Output: 191-206 kW (260-280 HP) @ 2200 RPM
• Torque: 1,078-1,177 Nm @ 1200-1400 RPM
• Fuel System: Direct Injection (DI) / Inline Fuel Pump (YAEDA/PE type)
• Compression Ratio: 16.0:1 - 17.0:1
• Bore × Stroke: 120 mm × 120 mm
• Firing Order: 1-5-4-2-6-3-7-8 (V8 bank-specific)
• Emission Standard: Pre-Euro / Local Industrial Standards

---

Suitable Models:

• Kamaz GBC / Kamaz-4310 Military Truck
• Kamaz 5320 / 53212 Heavy Truck
• Kamaz 5511 / 55111 Dump Truck
• Kamaz 43114 / 43118 Off-Road Truck
• Kamaz Master Rally Trucks (heritage applications)
• Ural-4320 / ZIL heavy vehicles (740-series engine swaps)
• Industrial generators & stationary power applications
