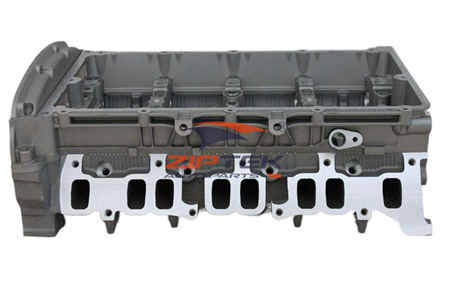

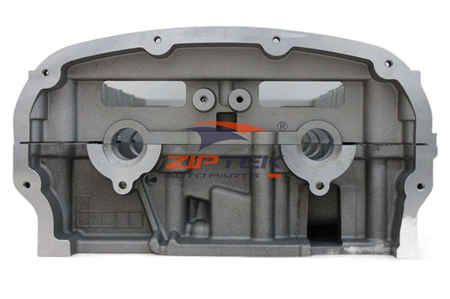

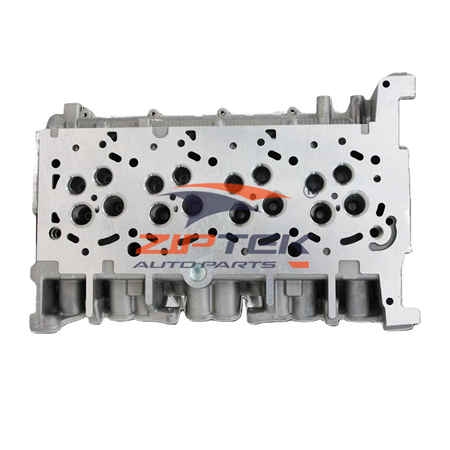

The cylinder head with reference number 1433147 is designed for Ford Duratorq 2.2L TDCI diesel engines with engine codes D8FA, QWFA, and SRFA. This aluminum alloy cylinder head features DOHC 16-valve configuration with high-pressure common rail compatibility, delivering reliable performance for Ford Transit, Ranger, Custom, and related commercial vehicle platforms.

---

Quick Specifications:

• Part Number: 1433147 (Ford OEM format)
• Engine Codes: D8FA / QWFA / SRFA (Duratorq Puma family)
• Displacement: 2.2 L (2,198 cc)
• Configuration: Inline-4 DOHC 16V, Turbocharged & Intercooled
• Fuel System: Common Rail Direct Injection (TDCI)
• Material: Aluminum Alloy
• Valve Configuration: DOHC 16-Valve (4 valves per cylinder)

---

Performance Data:

• Power Output: 74-114 kW (100-155 HP) @ 3,500 RPM (variant-dependent)
• Torque: 285-385 Nm @ 1,500-2,500 RPM
• Compression Ratio: 16.2:1 - 17.0:1
• Emission Standard: Euro 4 / Euro 5 / Euro 6

---

Applications:

• Ford Transit MK7 / Custom (2006-2019, 2.2 TDCI variants)
• Ford Ranger T6 (2011-2019, 2.2 TDCI variants)
• Ford Tourneo Custom (2.2 TDCI passenger van variants)
• Mazda BT-50 (2011-2020, shared 2.2 TDCI powertrain)
• Ford Transit Connect (select 2.2 TDCI applications)
• Commercial van, pickup, chassis cab & minibus conversions
