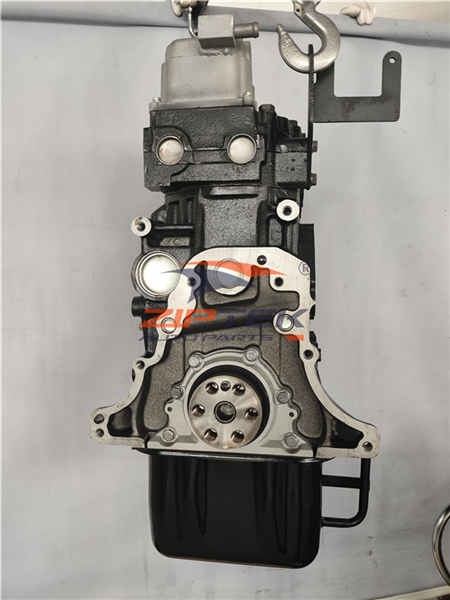

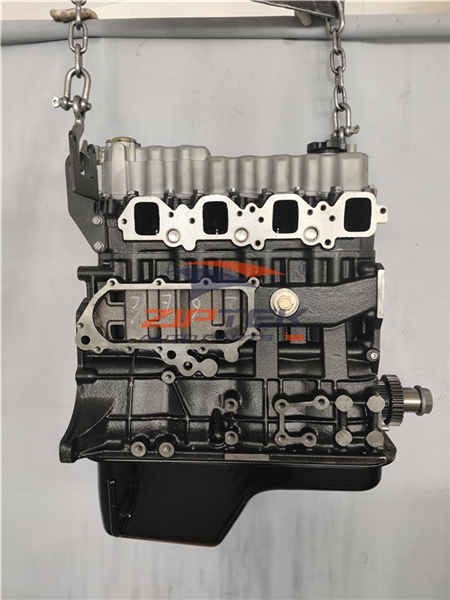

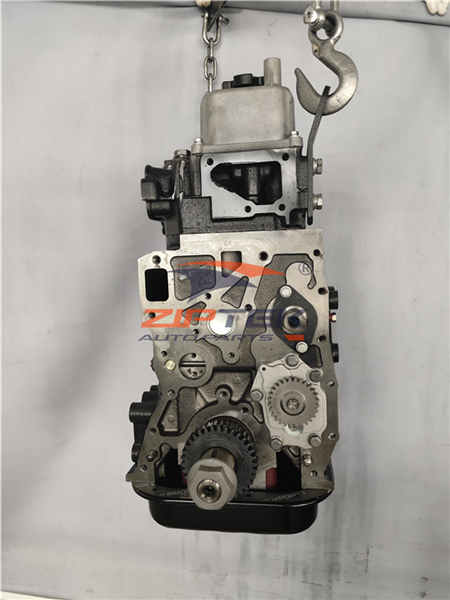

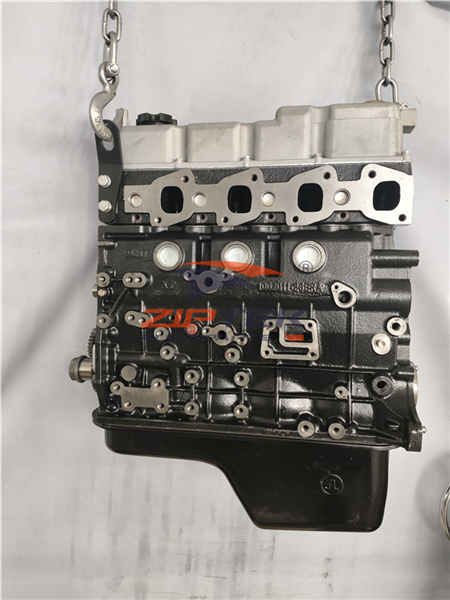

The FAW CA4DC2-10E3 is a 3.2-liter turbocharged diesel engine developed by FAW (First Automotive Works) for light commercial truck applications. This inline-four cylinder engine features advanced direct injection technology, overhead camshaft design, and robust construction engineered for reliable performance in urban delivery, regional logistics, and commercial transport operations. The CA4DC2 series is widely used in FAW Jiefang (Liberation) light trucks, vans, and specialty vehicles across China and emerging markets, offering a balance of fuel efficiency, durability, and compliance with China III emission standards.

---

Technical Specifications:

• Engine Code: CA4DC2-10E3 / CA4DC2 Series
• Engine Type: Inline-4, 4-stroke, water-cooled, turbocharged diesel
• Displacement: 3.2 L (3,168-3,298 cc, variant-dependent)
• Bore × Stroke: Approximately 96 mm × 110 mm
• Valve Configuration: SOHC 8-Valve or DOHC 16-Valve (variant-dependent)
• Valve Train: Gear-driven or belt-driven camshaft with mechanical/hydraulic lifters
• Fuel System: Direct Injection (DI) with mechanical inline pump or electronic control
• Aspiration: Turbocharged with intercooler
• Compression Ratio: 17.5:1 - 18.5:1
• Firing Order: 1-3-4-2

---

Performance Data:

• Maximum Power Output:
  • 75 kW (102 HP) @ 3,200 RPM (base variant)
  • 85 kW (115 HP) @ 3,200-3,600 RPM (common configuration)
  • 95 kW (129 HP) @ 3,600 RPM (optimized variant)
• Maximum Torque:
  • 280-320 Nm @ 1,600-2,200 RPM (variant-dependent)
  • Strong low-end torque characteristics ideal for stop-start urban driving and loaded conditions

---

Key Features:

• Robust Diesel Architecture: Cast iron cylinder block and reinforced components ensure longevity under commercial duty cycles and heavy payloads
• Turbocharging with Intercooling: Enhances power density and fuel efficiency while reducing thermal stress on engine components
• Direct Injection Technology: Optimized combustion for improved fuel economy, reduced emissions, and cleaner operation
• Emission Compliance: Meets China III (GB18352.3-2005) emission standards with mechanical injection calibration and basic exhaust aftertreatment
• Service-Oriented Design: Simple mechanical systems and widely available spare parts support easy maintenance in commercial fleet operations
• Adaptable Configuration: Compatible with various transmission setups, PTO applications, and specialty vehicle conversions
• Cold-Start Capability: Equipped with glow plugs or intake air pre-heating for reliable operation in varied climate conditions

---

Applications:

• FAW Jiefang 501 / 601 Series: Light-duty trucks for cargo and distribution transport
• FAW Jiefang V80 / V88: Commercial van and minibus variants
• FAW Jiefang Pickup / Utility Vehicles: Work truck and fleet applications
• Special Purpose Vehicles: Refrigerated trucks, box vans, ambulances, and mobile service units
• Agricultural & Rural Transport: Adapted for regional logistics and farm-to-market operations
• Aftermarket & Repower: Engine replacement and conversion projects for light commercial platforms
