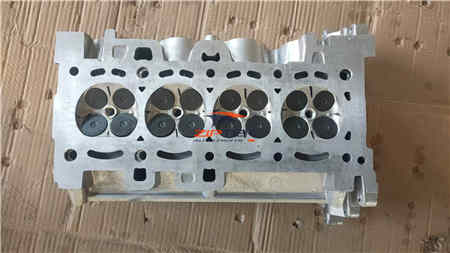

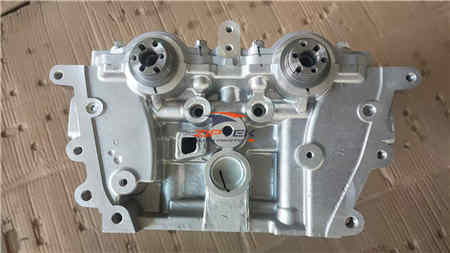

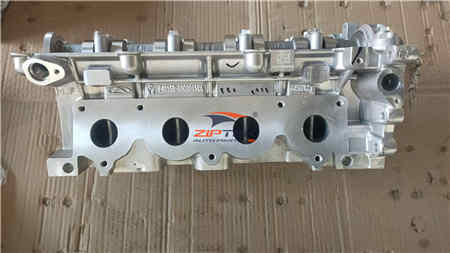

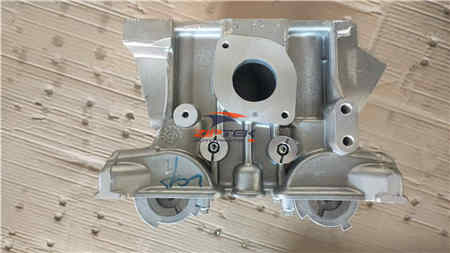

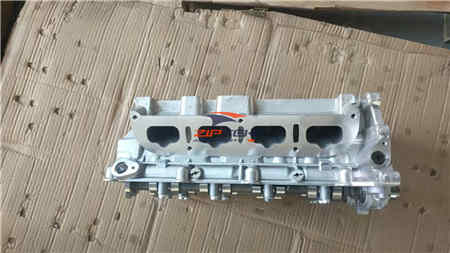

The cylinder head for Chery ACTECO SQRE4G16A and SQRE4G15B 1.5L gasoline engines is a precision-engineered component designed for compact SUVs and sedans. This aluminum alloy cylinder head features DOHC 16-valve configuration with DVVT compatibility and precision-machined valve seats, compatible with Chery Tiggo 3X, Arrizo 5, Arrizo GX, and Exeed TXL models. The cylinder head delivers reliable sealing, efficient heat dissipation, and durable performance for urban commuting and daily driving.

---

Technical Features:

• Part Type: Cylinder Head (Bare)
• Valve Configuration: DOHC 16-Valve + DVVT
• Material: Aluminum Alloy
• Application: SQRE4G15B / SQRE4G16A 1.5L Gasoline Engine
• Design: Cross-flow combustion chamber, optimized intake/exhaust ports

---

Engine Parameters:

• Engine Code: SQRE4G15B / SQRE4G16A (ACTECO family)
• Displacement: 1.5 L (1,497-1,499 cc)
• Configuration: Inline-4 DOHC 16V, Naturally Aspirated
• Power Output: 85-88 kW (116-120 HP) @ 6150 RPM
• Torque: 143-150 Nm @ 4000 RPM
• Fuel System: Multi-Point Fuel Injection (MPI)
• Compression Ratio: 11.0:1
• Bore × Stroke: 77 mm × 80.5 mm
• Firing Order: 1-3-4-2
• Emission Standard: China VI / Euro V

---

Suitable Models:

• Chery Tiggo 3X / Tiggo 3X Plus
• Chery Arrizo 5 / Arrizo 5 Plus
• Chery Arrizo GX / EX
• Chery Exeed TXL (base trim, select markets)
• Chery QQ Ice Cream (range extender variant)
